Number
Size (WxH)

Catalog
Number

Pieces per
Carton

1½ x 1½
1½ x 2¼
1½ x 3

 CL-1515
 CL-1522
 CL-1530

40
40
20

2¼ x 1½
2¼ x 2¼
2¼ x 3
2¼ x 4

 CL-2215
 CL-2222
 CL-2230
 CL-2240

40
20
20
20

3 x 1½
3 x 2¼
3 x 3
3 x 4

 CL-3015
 CL-3022
 CL-3030
 CL-3040

20
10
10
10

4 x 1½
4 x 2¼
4 x 3
4 x 4

 CL-4015
 CL-4022
 CL-4030
 CL-4040

10
10
10
5

6 x 4

 CL-6040

5

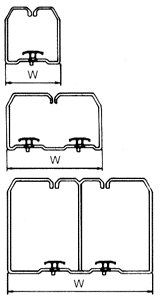

Catalog number indicates to which duct size (W x H) the CL will fit. CL wire retainers come complete with mounting elements.

Wire Retainers

They are indispensable for retaining wires during wiring operations. In case of alterations and/or maintenance of a finished panel, they facilitate access to the interior of wiring duct, avoiding, at the same time, wire falling out when the duct cover is removed. With simple rotating movement, they are firmly anchored in the recess boss in the duct base.

NEW DESIGN avoids fall out of wires especially in ceiling installations.
