Iboco T1-E Wire Duct

T1-E

Material	Rigid PVC,self extinguishing
Color	Light GREY RAL 7030 WHITE
Standard Length	6 Feet 6 ³/ ₄ Inches
Standard Unit Supplied	Duct complete with cover


	Non-slip cover design of minimum encumbrance and maximum grip.
		All wiring ducts come complete with cover. Extra wiring duct covers can be sold separately.
		Fill Capacity Table



Restricted slot opening for wire retaining.
Two predetermined break lines: for breaking off and removal of sidewall finger segments only. for removal of sidewall finger and base segments.
Burr-free edges for avoiding damage to the panel electrician’s hands.

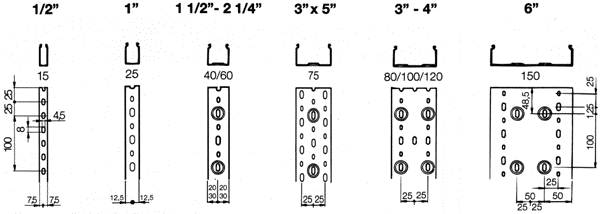

Patented recess boss for rapid mounting of components.

Nominal Size (WxH)	Catalog Number	Dimensions in Inches (Actual)				Dimensions WxH (in millimeters)	Standard Carton (Qty)
Nominal Size (WxH)	Catalog Number	W	H	E	F	Dimensions WxH (in millimeters)	Lengths (1)	Feet
1 x 1½ 1 x 2¼ 1 x 3	T1E-1015* T1E-1022* T1E-1030*	1.00 1.00 1.00	1.57 2.36 3.15	.16 .16 .16	.24 .24 .24	25 x 40 25 x 60 25 x 80	18 24 24	108 144 144
1½ X 1½ 1½ X 2¼ 1½ X 3	T1E-1515* T1E-1522* T1E-1530*	1.57 1.57 1.57	1.57 2.36 3.15	.16 .16 .16	.24 .24 .24	40 x 40 40 x 60 40 x 80	20 18 16	120 108 96
2¼ x 1½ 2¼ x 2¼ 2¼ x 3	T1E-2215G T1E-2222* T1E-2230*	2.36 2.36 2.36	1.57 2.36 3.15	.16 .16 .16	.24 .24 .24	60 x 40 60 x 60 60 x 80	12 12 12	72 72 72
3 x 1½ 3 x 2¼ 3 x 3	T1E-3015G T1E-3022* T1E-3030*	3.15 3.15 3.15	1.57 2.36 3.15	.16 .16 .16	.24 .24 .24	80 x 40 80 x 60 80 x 80	12 12 12	72 72 72
4 x 1½ 4 x 2¼ 4 x 3 4 x 4	T1E-4015G T1E-4022G T1E-4030 * T1E-4040 *	3.94 3.94 3.94 3.94	1.57 2.36 3.15 3.94	.16 .16 .16 .16	.24 .24 .24 .24	100 x 40 100 x 60 100 x 80 100 x 100	8 8 8 4	48 48 48 24

Example: T1E-1015G=1" x 1½" light GREY Duct with cover

(1) Each standard length is actually 6’6¾ " but is counted as 6 feet for packaging and pricing.
* Color – add suffix "G" for light GREY; "W" for WHITE
