• Each length is 19.7 inches (500 mm)

Dinosaur Duct is a unique product offering from IBOCO that is a flexible, resilient and efficient harnessing solution to your bundling needs.

For wiring to cabinet doors, from control panels and for electronic equipment.

For that part of the cable run that leans against the side of the control cabinet.

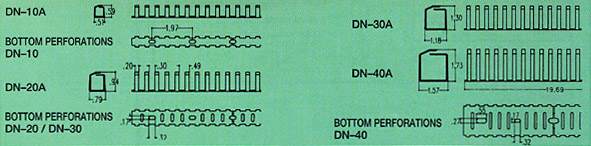

Available in four sizes with adhesive tape.

• Due to the flexibility of the material individual wires can easily be added, or removed from total wires within the duct.
• Since Dinosaur has no cover it can accommodate cables in restricted space applications, and also effectively removes the need for cable ties.
• It can be used in extreme operating conditions (i.e. max. temp. up to 176ºF) and has excellent resistance to radiation if exposed to a nuclear environment.
• Dinosaur withstands mechanical stress when installed (i.e. earthquake, falling equipment) while in the event of fire does not emit corrosive, nor toxic gases, and smoke development is minimal.
• The duct can be cut to desired length using scissors or knife.

When applying the Dinosaur with adhesive tape, (DN-10A, DN-20A, DN-30A, DN-40A) it is necessary to make sure that the surface is perfectly clean and dry.
