Connex Connector Product Specification Sheet

Part Number  122377 Family/Series: TNC Coaxial Connectors Product Type: Jack Crimp Attachments for Flexible And Semi-Rigid Cable Description: Straight Crimp Jack - Miniature Cable

Specifications

Electrical

Cable Group 05A    Cable Types: 316 / U DOUBLE BRAIDED

Finish Nickel

Insulation Delrin

Impedance 50 ohms

Crimp Tool B

Remark:  With teflon sleeve, Hex. crimp size .178"

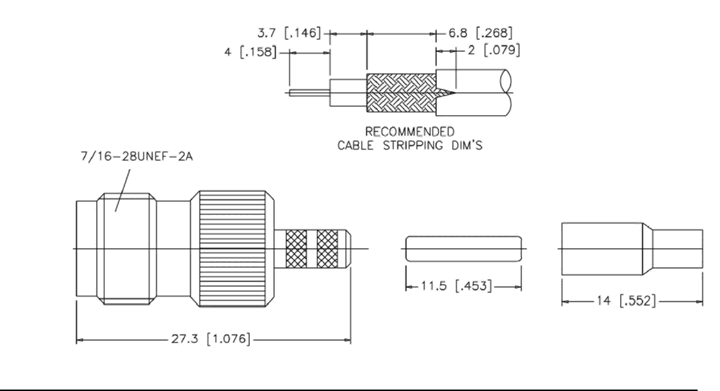

Schematic Drawing
