 Connex Connector Product Specification Sheet
Part Number Add part number 122325 to your Quote. 122325
Family/Series: TNC Coaxial Connectors
Product Type: Printed Circuit Board/Straight R/A Terminals
Description: Commercial Right Angle PCB Mount Jack
High Profile, 15.88mm Black

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Polypropylene
Impedance 75 ohms
Crimp Tool N/A

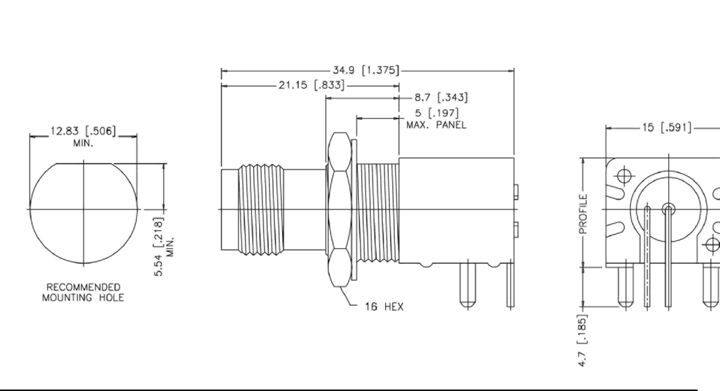

Schematic Drawing
Connex part number 122325 schematic
