 Connex Connector Product Specification Sheet
Part Number Add part number 122310 to your Quote. 122310
Family/Series: TNC Coaxial Connectors
Product Type: Wedge Compression Attachments for Flexible Cable
Description: Wedge Compression Jack

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

Remark:  With wedge contact

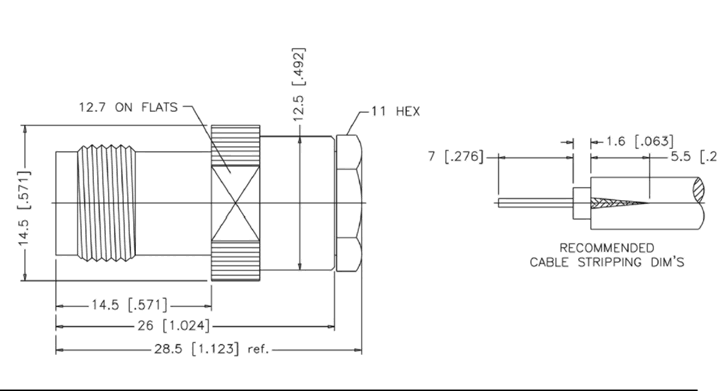

Schematic Drawing
Connex part number 122310 schematic
