 Connex Connector Product Specification Sheet
Part Number Add part number 122260 to your Quote. 122260
Family/Series: TNC Coaxial Connectors
Product Type: Twist-On Attachments for Flexible Cable
Description: Twist-On Jack

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

Remark:  Only for solid center conductor cable

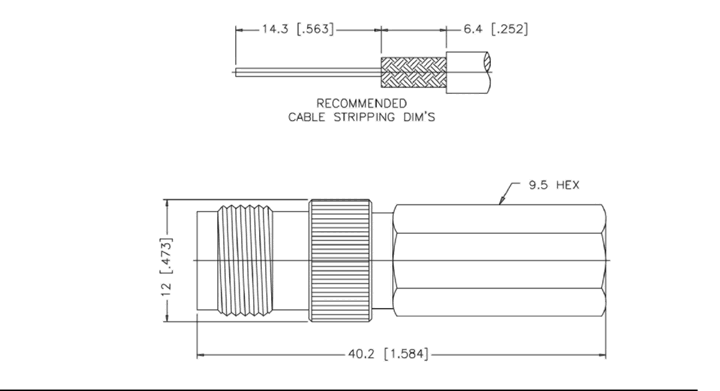

Schematic Drawing
Connex part number 122260 schematic
