Connex Connector Product Specification Sheet

Part Number  122140 Family/Series: TNC Coaxial Connectors Product Type: Right Angle Plug Crimp Attachments for Flexible And Semi-Rigid Cable Description: Right Angle Crimp/Solder Plug - Standard Cable

Specifications

Electrical

Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A

Finish Nickel

Insulation Delrin

Impedance 50 ohms

Crimp Tool A

Remark:  Remark: Cable center conductor solder to pin directly

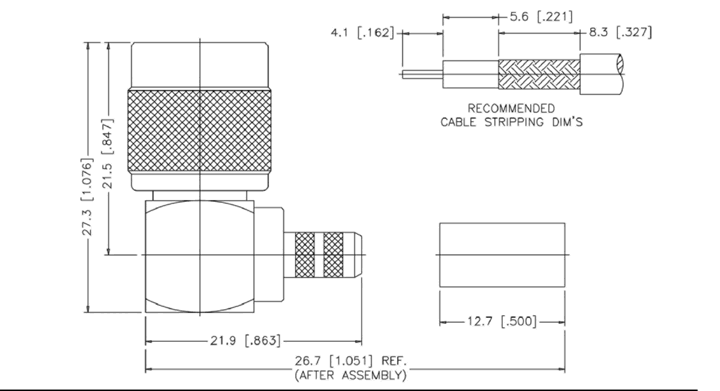

Schematic Drawing
