 Connex Connector Product Specification Sheet
Part Number Add part number 142292 to your Quote. 142292
Family/Series: SMB/SMC Coaxial Connectors
Product Type: Crimp Attachments for Flexible Cable - 75 OHM Snap Lock
Description: Right Angle Crimp Plug - Snap Lock

Specifications
Electrical
Cable Group 16    Cable Types: 180 / 195 / 122 / B82187 / B1865A / B1855
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool B

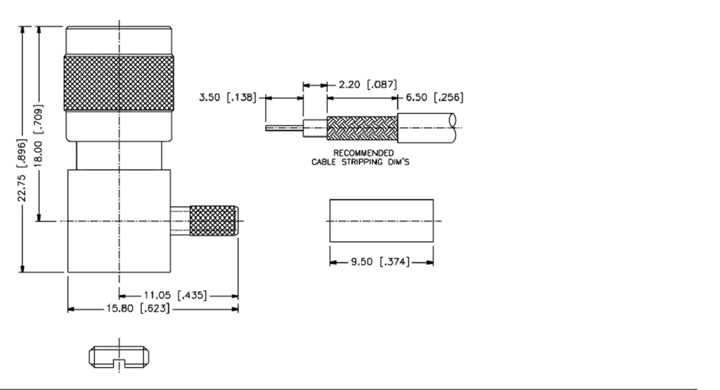

Schematic Drawing
Connex part number 142292 schematic
