 Connex Connector Product Specification Sheet
Part Number Add part number 142206 to your Quote. 142206
Family/Series: SMB/SMC Coaxial Connectors
Product Type: Crimp Attachments for Flexible & Semi-Rigid Cable
Description: Right Angle Cable Plug - Flexible Cable
SMB Connectors

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

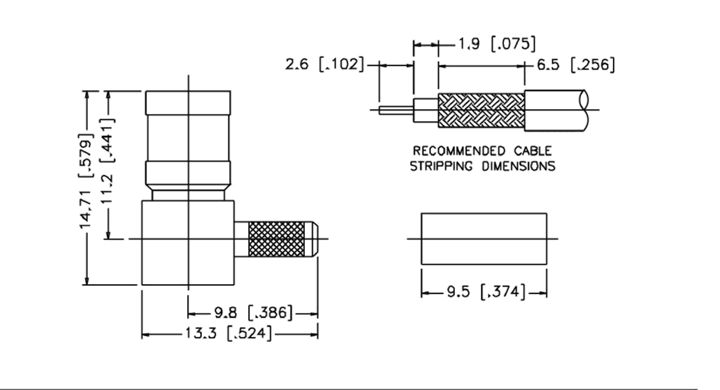

Schematic Drawing
Connex part number 142206 schematic
