 Connex Connector Product Specification Sheet
Part Number Add part number 142135 to your Quote. 142135
Family/Series: SMB/SMC Coaxial Connectors
Product Type: Printed Circuit Board/Straight Terminals
Description: Straight Plug For P.C. Board
SMB Connectors

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 75 ohms
Crimp Tool N/A

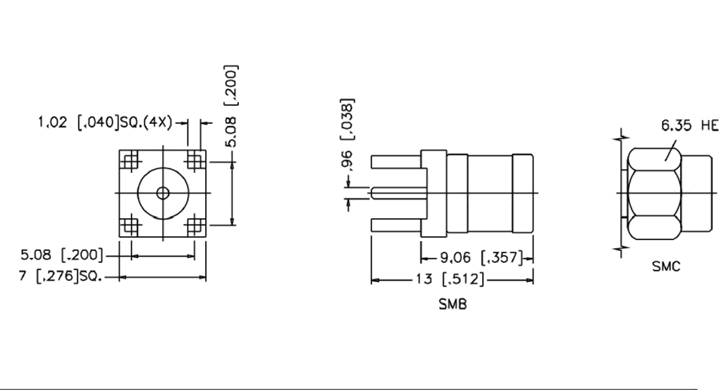

Schematic Drawing
Connex part number 142135 schematic
