 Connex Connector Product Specification Sheet
Part Number Add part number 132276 to your Quote. 132276
Family/Series: SMA Coaxial Connectors
Product Type: Panel Mount/Solder Pot Terminals
Description: Right Angle Panel Mount Jack Receptacle - 2-Hole 45% Flange - Exposed TFE Type

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

Remark:  Extended teflon insulation available in various lengths. Contact Connex marketing department for part number and availability

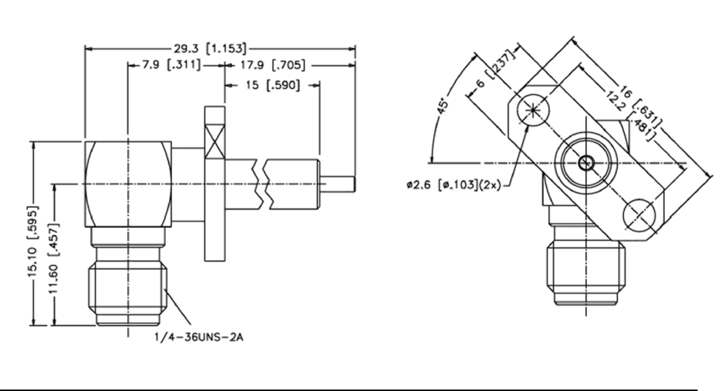

Schematic Drawing
Connex part number 132276 schematic
