 Connex Connector Product Specification Sheet
Part Number Add part number 132151 to your Quote. 132151
Family/Series: SMA Coaxial Connectors
Product Type: Panel Mount/Solder Pot Terminals
Description: Panel Mount Jack Receptacle - 2 Hole Flange - Blunt Post

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

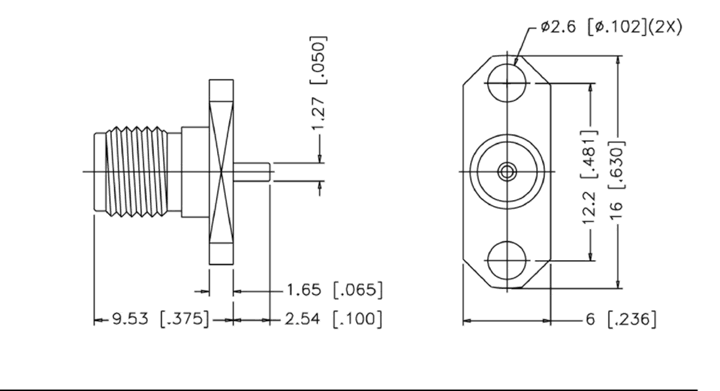

Schematic Drawing
Connex part number 132151 schematic
