 Connex Connector Product Specification Sheet
Part Number Add part number 132144 to your Quote. 132144
Family/Series: SMA Coaxial Connectors
Product Type: Panel Mount/Solder Pot Terminals
Description: Panel Mount Plug Receptacle - 4 Hole Square Flange - Exposed TFE Type

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

Remark:  Extended teflon insulation available in various lengths. Contact Connex marketing department for part number and availability

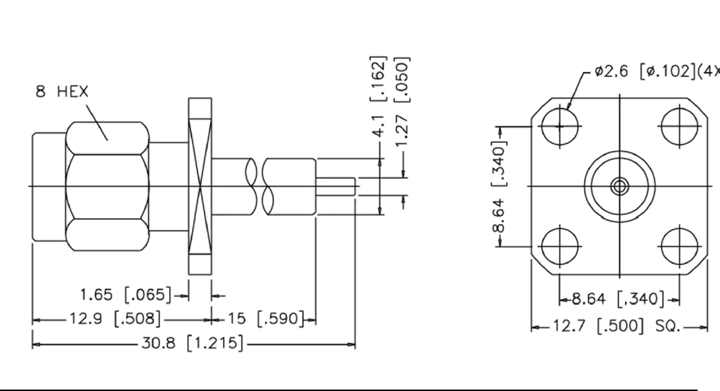

Schematic Drawing
Connex part number 132144 schematic
