 Connex Connector Product Specification Sheet
Part Number Add part number 172221 to your Quote. 172221
Family/Series: N Coaxial Connectors
Product Type: Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description: Bulkhead Crimp Jack - Captive Contact - Standard Cables
Front Mount

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool B

Remark:  Rear Mount, except where indicated

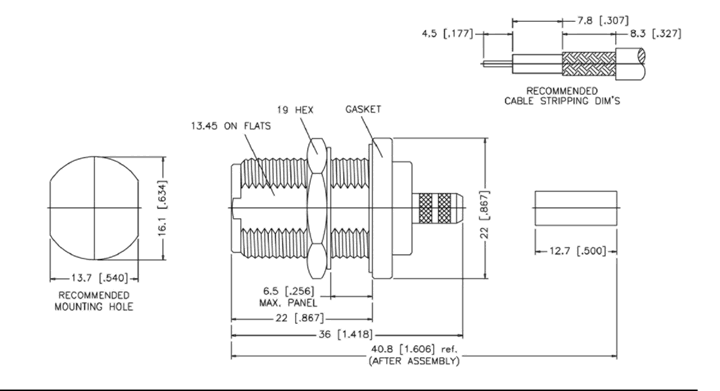

Schematic Drawing
Connex part number 172221 schematic
