 Connex Connector Product Specification Sheet
Part Number Add part number 252114 to your Quote. 252114
Family/Series: MCX Coaxial Connectors
Product Type: Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

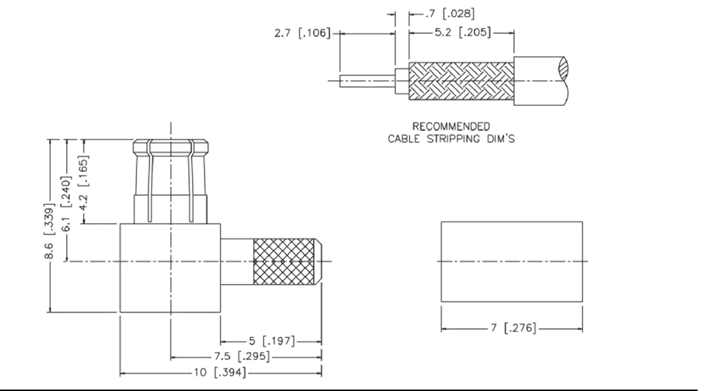

Schematic Drawing
Connex part number 252114 schematic
