 Connex Connector Product Specification Sheet
Part Number Add part number 112612 to your Quote. 112612
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Bulkhead Clamp Jack - Captive Contact

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

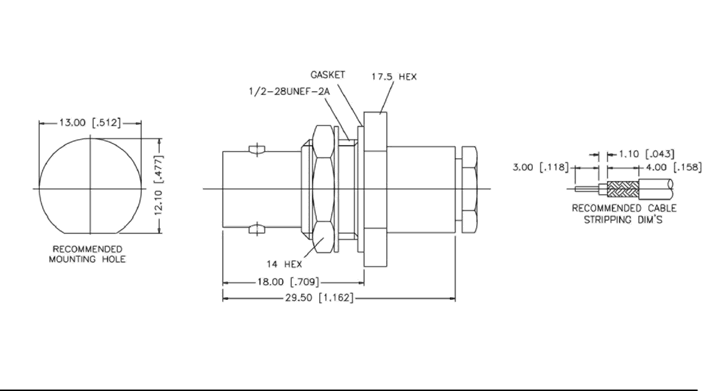

Schematic Drawing
Connex part number 112612 schematic
