 Connex Connector Product Specification Sheet
Part Number Add part number 112604 to your Quote. 112604
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 07C    Cable Types: B9913 / LMR400 / B7810A / B8214
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

Remark:  3.5 [.138] Max. panel thickness

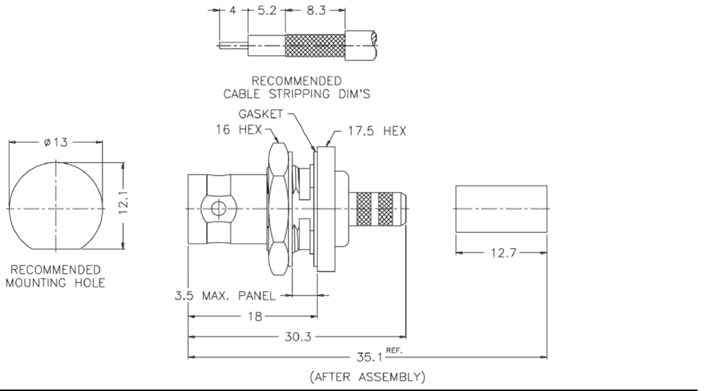

Schematic Drawing
Connex part number 112604 schematic
