Connex Connector BNC Type RF Coaxial Connector part number 112594

Part Number	112594
Family/Series:	BNC Coaxial Connectors
Product Type:	Right Angle Plug Crimp Attachments for Flexible Cable
Description:	Right Angle Crimp/Solder Plug - Standard Cable Brass Shell

Specifications

Electrical

Cable Group

07 Cable Types: 8 / 8A / 213 / 393

Finish

Nickel

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

Remark:	Cable Center Conductor Solder to pin directly
*	Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

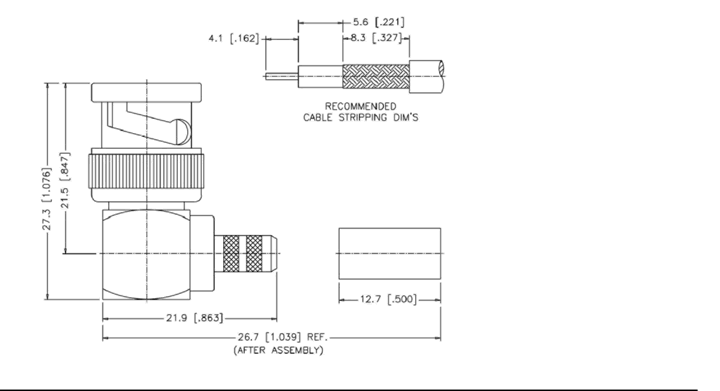

Schematic Drawing
