 Connex Connector Product Specification Sheet
Part Number Add part number 112531 to your Quote. 112531
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Plug - Captive Contact
Brass Shell

Specifications
Electrical
Cable Group 07    Cable Types: 8 / 8A / 213 / 393
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

Remark:  Barrel O.D. = 12.5 mm

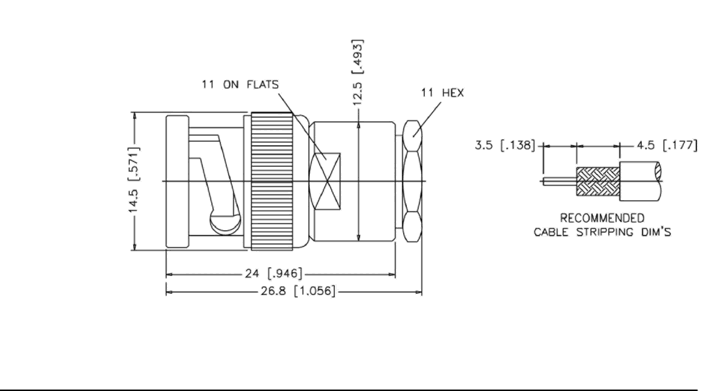

Schematic Drawing
Connex part number 112531 schematic
