 Connex Connector Product Specification Sheet
Part Number Add part number 112517 to your Quote. 112517
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Miniature Cable

Specifications
Electrical
Cable Group 05A    Cable Types: 316 / U DOUBLE BRAIDED
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  *Center contact .052" diameter, 30µ" Au, true 75 ohm. Use .044 Hex. crimp or 12-indent crimp. With teflon sleeve, Hex. crimp size .178", 3.5 [.138] Max. panel thickness

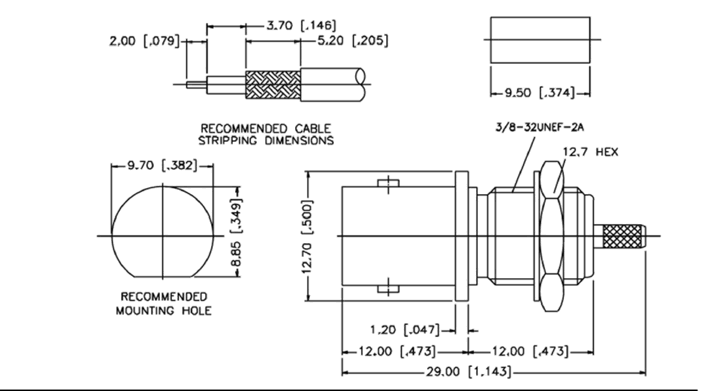

Schematic Drawing
Connex part number 112517 schematic
