 Connex Connector Product Specification Sheet
Part Number Add part number 112507 to your Quote. 112507
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Standard Cable
Brass Shell

Specifications
Electrical
Cable Group 03A    Cable Types: 59 / U-20AWG
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool A

*  Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

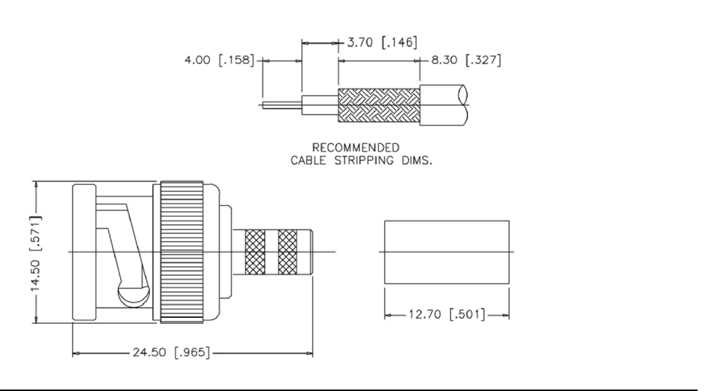

Schematic Drawing
Connex part number 112507 schematic
