 Connex Connector Product Specification Sheet
Part Number Add part number 112505 to your Quote. 112505
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 01A    Cable Types: 55 / 142 / 223 / 400
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

Remark:   3.5 [.138] Max. panel thickness

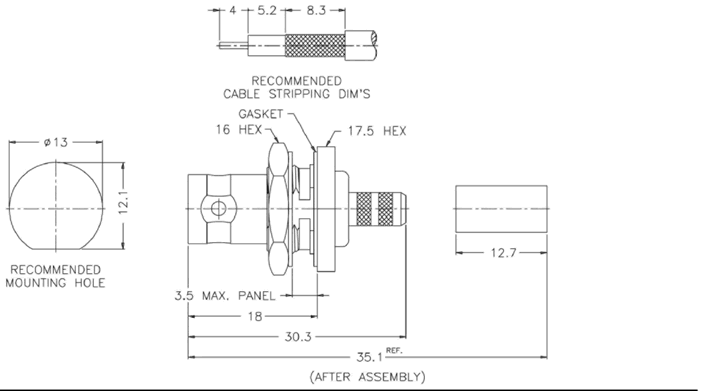

Schematic Drawing
Connex part number 112505 schematic
