 Connex Connector Product Specification Sheet
Part Number Add part number 112503 to your Quote. 112503
Family/Series: BNC Coaxial Connectors
Product Type: Printed Circuit Board/Receptacles
Description: Commercial Right Angle PCB Mount Jack — Metal Body
High Profile, 15.88mm
Diecast Shell

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Polypropylene
Impedance 75 ohms
Crimp Tool N/A

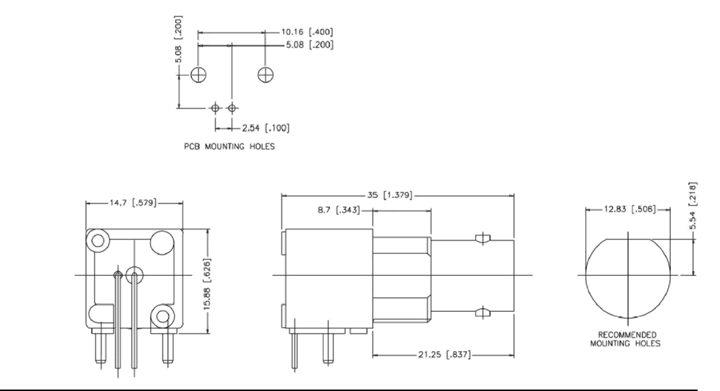

Schematic Drawing
Connex part number 112503 schematic
