 Connex Connector Product Specification Sheet
Part Number Add part number 112477 to your Quote. 112477
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Plug - Captive Contact
Brass Shell

Specifications
Electrical
Cable Group 06    Cable Types: 179 / 187 / B9221
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool N/A

Remark:  Barrel O.D. = 12.5 mm

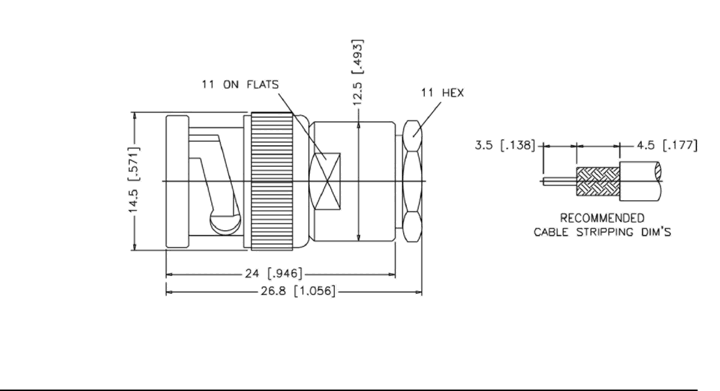

Schematic Drawing
Connex part number 112477 schematic
