 Connex Connector Product Specification Sheet
Part Number Add part number 112443 to your Quote. 112443
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Isolated Ground Adapters
Description: Jack-To-Jack Bulkhead - Isolated Adapter

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

Remark:  Isolated from ground, 5.5 mm [.217] Max. panel thickness

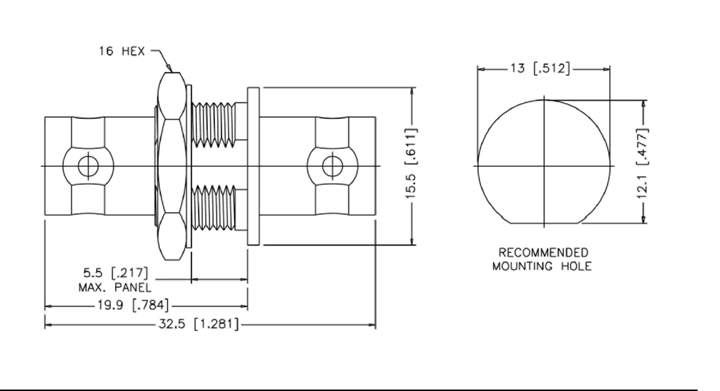

Schematic Drawing
Connex part number 112443 schematic
