Connex Connector BNC Type RF Coaxial Connector part number 112434

Part Number	112434
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Feedthrough Adapters
Description:	Jack-To-Jack Bulkhead Adapter

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

N/A

Remark:

8.0 mm [.315] Max. panel thickness, M55339/13–00492

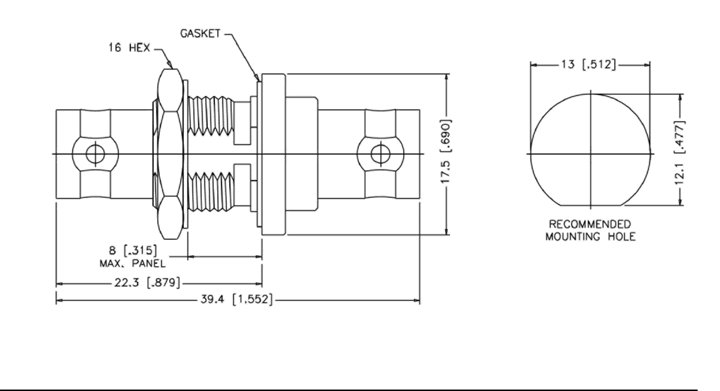

Schematic Drawing

Connex part number 112434 schematic
