 Connex Connector Product Specification Sheet
Part Number Add part number 112427 to your Quote. 112427
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Receptacle/Solder Pot Terminals
Description: Bulkhead Receptacle Jack
L1 = 6.5 [.256] panel thickness, L = 30.0 [1.18]

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool N/A

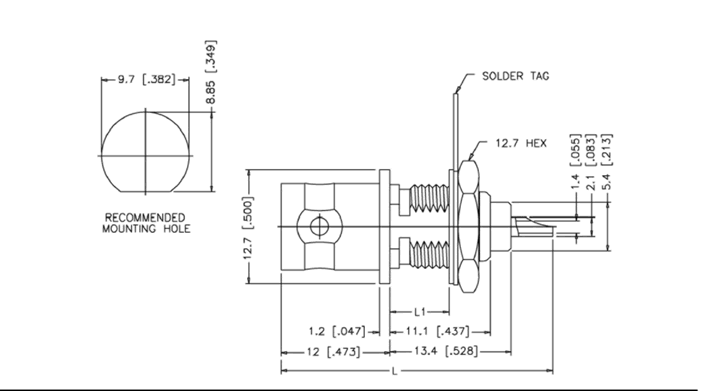

Schematic Drawing
Connex part number 112427 schematic
