Connex Connector BNC Type RF Coaxial Connector part number 112426

Part Number	112426
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Receptacle/Solder Pot Terminals
Description:	Bulkhead Receptacle Jack L1 = 6.5 [.256] panel thickness, L = 30.0 [1.18]

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

N/A

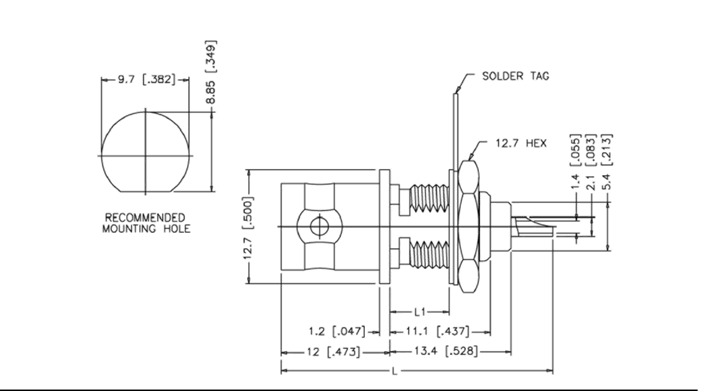

Schematic Drawing

Connex part number 112426 schematic
