 Connex Connector Product Specification Sheet
Part Number Add part number 112424 to your Quote. 112424
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Receptacle/Solder Pot Terminals
Description: Bulkhead Receptacle Jack
L1 = 3.2 [.126] panel thickness, L = 26.7 [1.05]

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

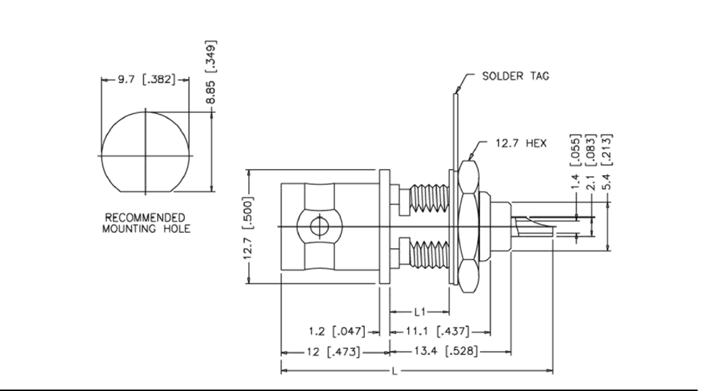

Schematic Drawing
Connex part number 112424 schematic
