 Connex Connector Product Specification Sheet
Part Number Add part number 112419 to your Quote. 112419
Family/Series: BNC Coaxial Connectors
Product Type: Printed Circuit Board/Receptacles
Description: Commercial Right Angle PCB Mount Jack
Low Profile, 13.1mm Black

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Polypropylene
Impedance 75 ohms
Crimp Tool N/A

Remark:  Add L to part number for Locking Legs

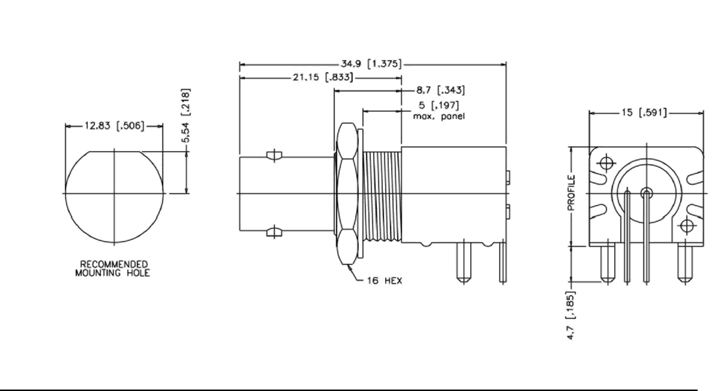

Schematic Drawing
Connex part number 112419 schematic
