 Connex Connector Product Specification Sheet
Part Number Add part number 112413 to your Quote. 112413
Family/Series: BNC Coaxial Connectors
Product Type: Printed Circuit Board/Receptacles
Description: Commercial Right Angle PCB Mount Jack
High Profile, 15.88mm White

Specifications
Electrical
Cable Group N/A
Finish Nickel
Insulation Polypropylene
Impedance 75 ohms
Crimp Tool N/A

Remark:  Add L to part number for Locking Legs

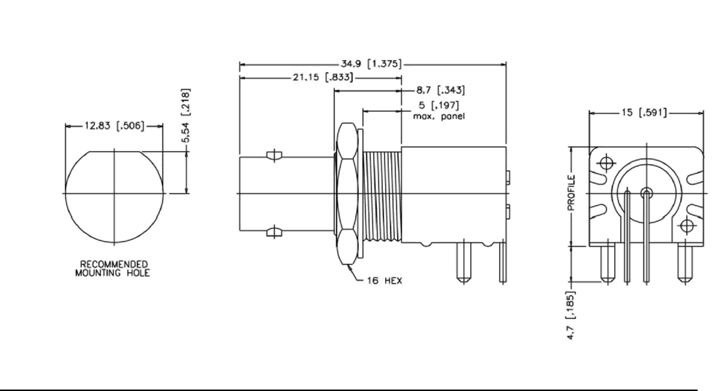

Schematic Drawing
Connex part number 112413 schematic
