 Connex Connector Product Specification Sheet
Part Number Add part number 112386 to your Quote. 112386
Family/Series: BNC Coaxial Connectors
Product Type: Wedge Compression Attachments for Flexible Cable
Description: Wedge Compression Plug
Brass Shell

Specifications
Electrical
Cable Group 04    Cable Types: 59 / U PLENUM
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

Remark:  With wedge pin

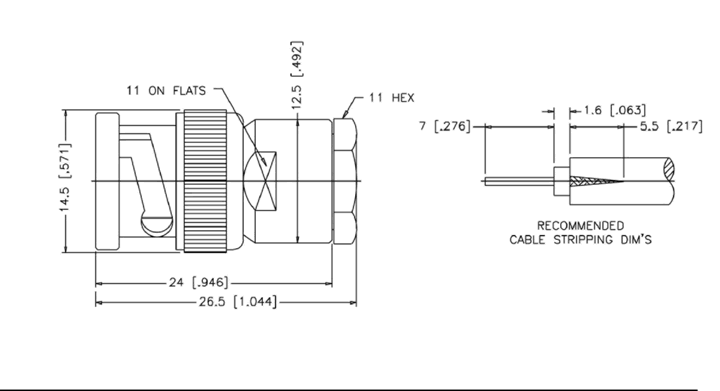

Schematic Drawing
Connex part number 112386 schematic
