 Connex Connector Product Specification Sheet
Part Number Add part number 112288 to your Quote. 112288
Family/Series: BNC Coaxial Connectors
Product Type: Panel Jack Crimp Attachments for Flexible Cable/Receptacle
Description: Panel Crimp Jack - Miniature And Semi-Rigid Cable
Teflon/Captured

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  5.0 [.197] Max. panel thickness

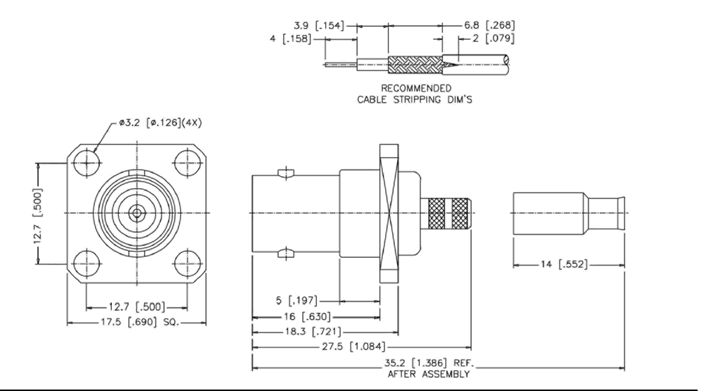

Schematic Drawing
Connex part number 112288 schematic
