 Connex Connector Product Specification Sheet
Part Number Add part number 112253 to your Quote. 112253
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Isolated Crimp Jack - Miniature Cable

Specifications
Electrical
Cable Group 06    Cable Types: 179 / 187 / B9221
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool B

Remark:  6.0 [.236] Max. panel thickness

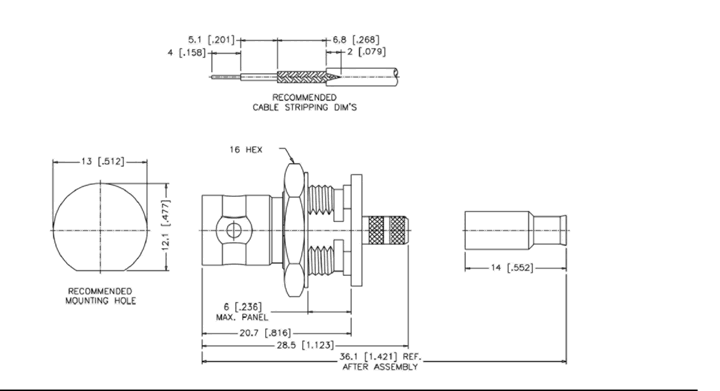

Schematic Drawing
Connex part number 112253 schematic
