 Connex Connector Product Specification Sheet
Part Number Add part number 112239 to your Quote. 112239
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Isolated Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool A

Remark:  6.0 [.236] Max. panel thickness

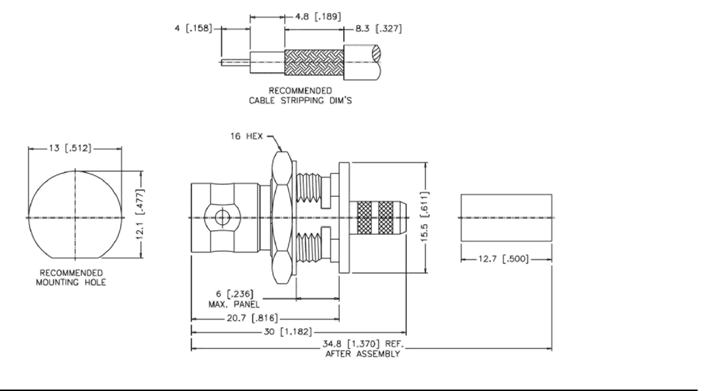

Schematic Drawing
Connex part number 112239 schematic
