 Connex Connector Product Specification Sheet
Part Number Add part number 112208 to your Quote. 112208
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Delrin/ Noncaptured

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:   3.5 [.138] Max. panel thickness

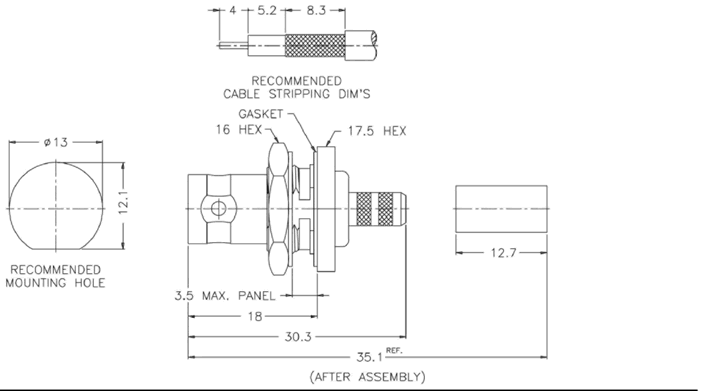

Schematic Drawing
Connex part number 112208 schematic
