 Connex Connector Product Specification Sheet
Part Number Add part number 112198 to your Quote. 112198
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Crimp Plug - Miniature Cable
Brass Shell

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  With teflon sleeve Hex. crimp size .178" Crimp/Crimp Type

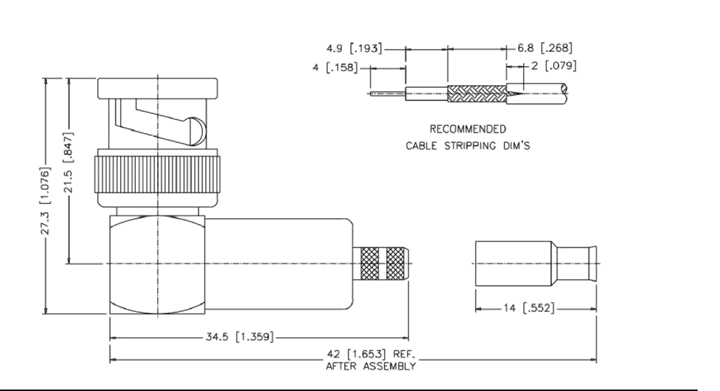

Schematic Drawing
Connex part number 112198 schematic
