 Connex Connector Product Specification Sheet
Part Number Add part number 112185 to your Quote. 112185
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Crimp Plug - Standard Cable
Brass Shell

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool A

Remark:  Crimp/Crimp Type

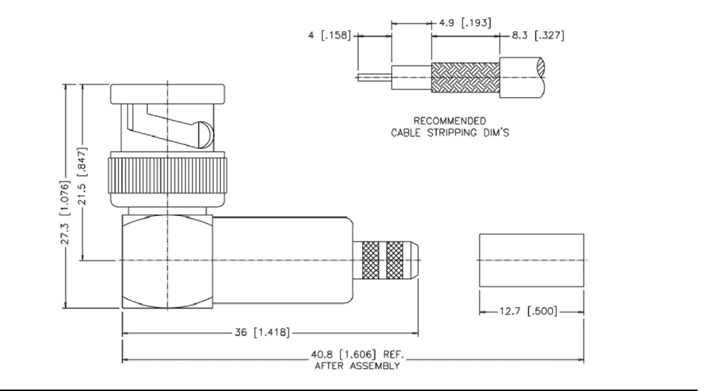

Schematic Drawing
Connex part number 112185 schematic
