 Connex Connector Product Specification Sheet
Part Number Add part number 112174 to your Quote. 112174
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Solder Plug -Plenum Cable
Diecast Shell

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:   Cable Center Conductor Solder to pin directly

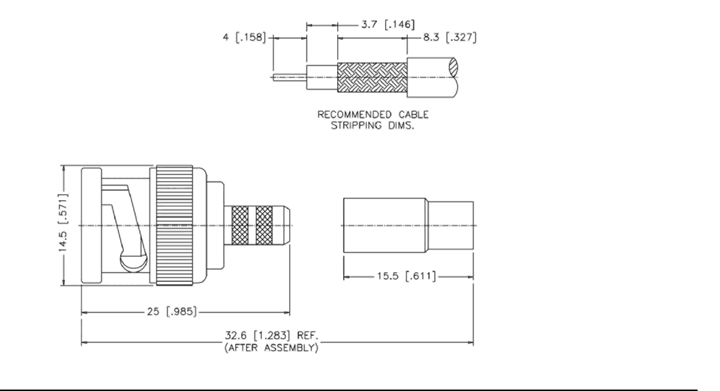

Schematic Drawing
Connex part number 112174 schematic
