 Connex Connector Product Specification Sheet
Part Number Add part number 112166 to your Quote. 112166
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Solder Plug - Standard Cable
Diecast Shell

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:  Cable Center Conductor Solder to pin directly
Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

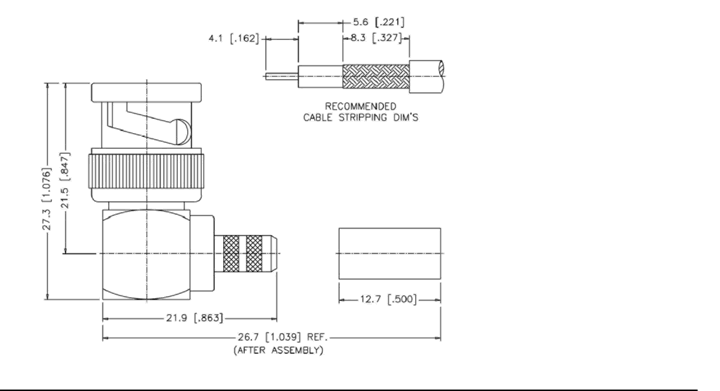

Schematic Drawing
Connex part number 112166 schematic
