 Connex Connector Product Specification Sheet
Part Number Add part number 112164 to your Quote. 112164
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Solder Plug - Standard Cable
Brass Shell

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:  Cable Center Conductor Solder to pin directly
Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

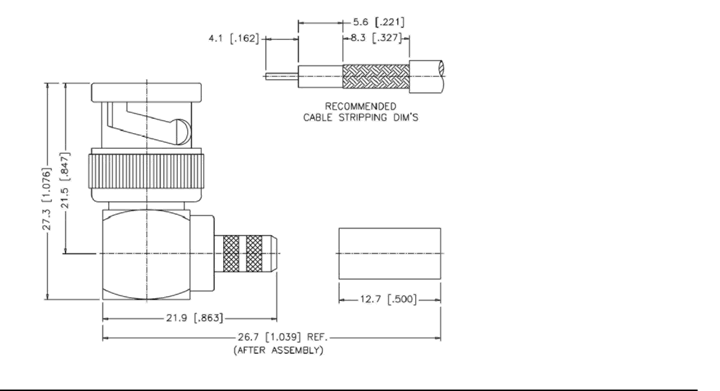

Schematic Drawing
Connex part number 112164 schematic
