 Connex Connector Product Specification Sheet
Part Number Add part number 112161 to your Quote. 112161
Family/Series: BNC Coaxial Connectors
Product Type: Jack Crimp Attachments for Flexible Cable
Description: Straight Crimp Jack - Miniature And Semi-Rigid Cable

Specifications
Electrical
Cable Group 06    Cable Types: 179 / 187 / B9221
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool B

Remark:  With teflon sleeve, Hex crimp size .178"

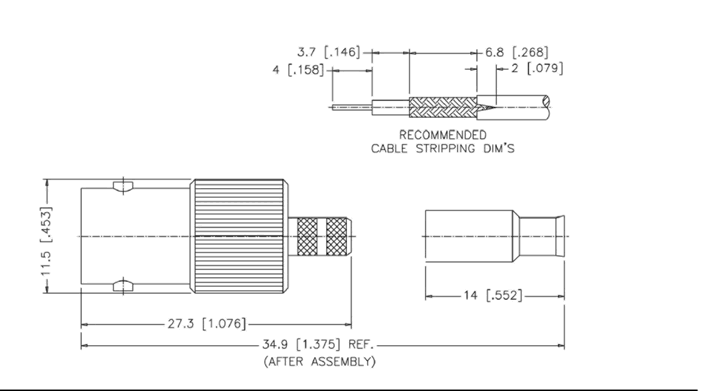

Schematic Drawing
Connex part number 112161 schematic
