 Connex Connector Product Specification Sheet
Part Number Add part number 112150 to your Quote. 112150
Family/Series: BNC Coaxial Connectors
Product Type: Jack Crimp Attachments for Flexible Cable
Description: Straight Crimp Jack - Standard Cable
Captured

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

*Center contact .052" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

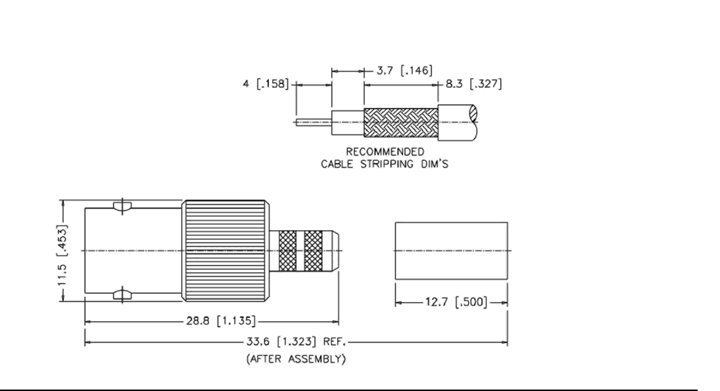

Schematic Drawing
Connex part number 112150 schematic
