Connex Connector BNC Type RF Coaxial Connector part number 112135

Part Number	112135
Family/Series:	BNC Coaxial Connectors
Product Type:	Plug Crimp Attachments for Flexible Cable
Description:	Straight Crimp Plug - Captive Contact - Miniature Cable Diecast Shell

Specifications

Electrical

Cable Group

06 Cable Types: 179 / 187 / B9221

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

Remark:

With teflon sleeve/Hex crimp size.178" *Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

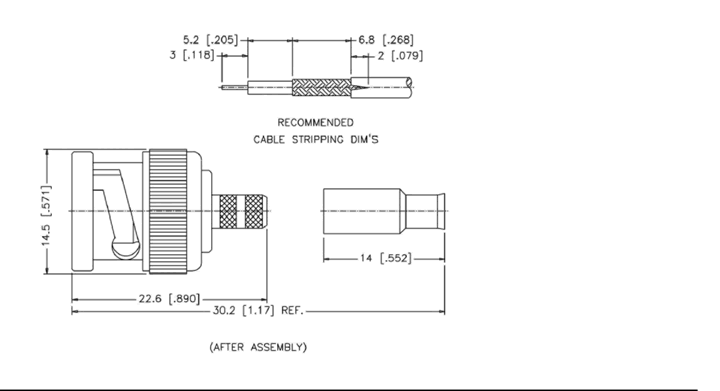

Schematic Drawing
