 Connex Connector Product Specification Sheet
Part Number Add part number 112133 to your Quote. 112133
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Miniature Cable
Brass Shell

Specifications
Electrical
Cable Group 06    Cable Types: 179 / 187 / B9221
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool B

Remark:   With teflon sleeve/Hex crimp size.178" *Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

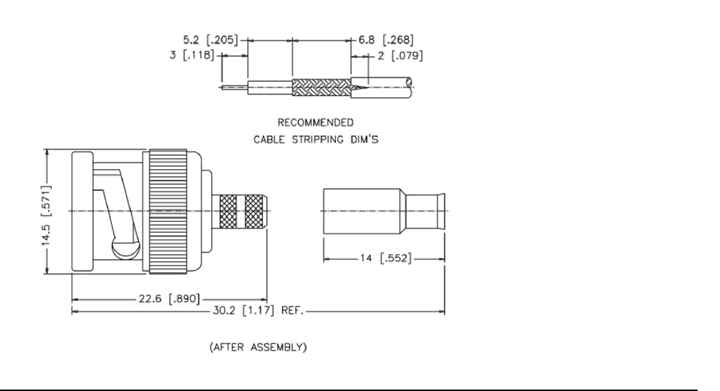

Schematic Drawing
Connex part number 112133 schematic
