 Connex Connector Product Specification Sheet
Part Number Add part number 112132 to your Quote. 112132
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Miniature Cable
Brass Shell

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  With teflon sleeve/Hex crimp size.178" *Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

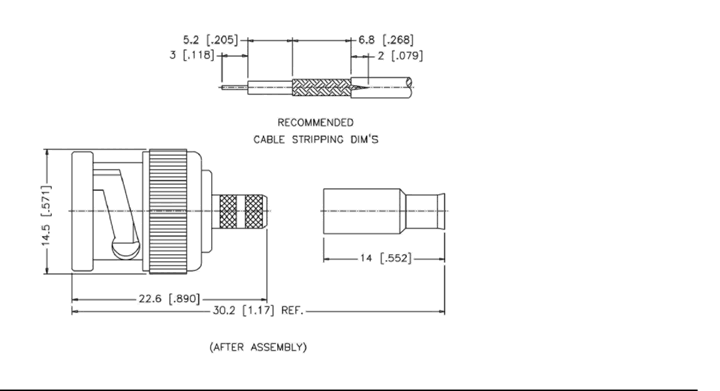

Schematic Drawing
Connex part number 112132 schematic
