Connex Connector BNC Type RF Coaxial Connector part number 112120

Part Number	112120
Family/Series:	BNC Coaxial Connectors
Product Type:	Plug Crimp Attachments for Flexible Cable
Description:	Straight Crimp Plug - Captive Contact - Standard Cable Diecast Shell

Specifications

Electrical

Cable Group

01 Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

*	Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

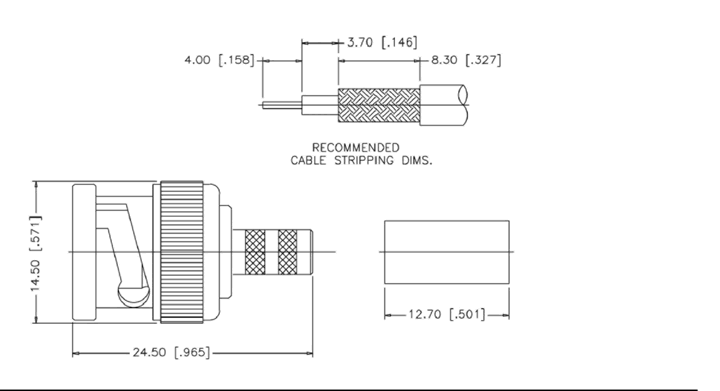

Schematic Drawing
