 Connex Connector Product Specification Sheet
Part Number272171
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Panel Receptacles
Description:Bulkhead Receptacles

Specifications
Electrical
Cable GroupN/A
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

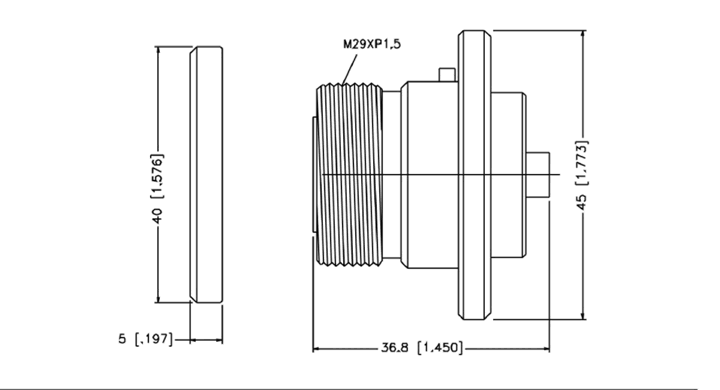

Schematic Drawing
Connex part number 272171 schematic
