 Connex Connector Product Specification Sheet
Part Number Add part number 272164 to your Quote. 272164
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Straight Plugs
Description: Straight Clamp Plug - Super Flex Cable
Helical

Specifications
Electrical
Cable Group 7/8"
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

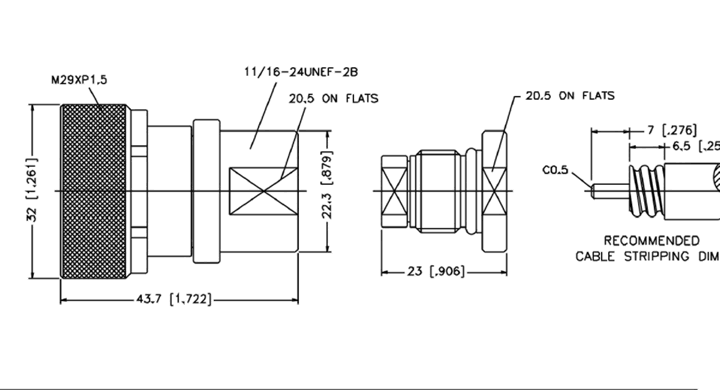

Schematic Drawing
Connex part number 272164 schematic
